• 1-Amp Schottky Diode (1N5817 / 1N5819) Barrier Rectifier

1-Amp Schottky Diode (1N5817 / 1N5819) Barrier Rectifier

  • RM0.21

  • Ex Tax: RM0.20
  • Product Code: 1N58xx
  • Availability: In Stock

Available Options

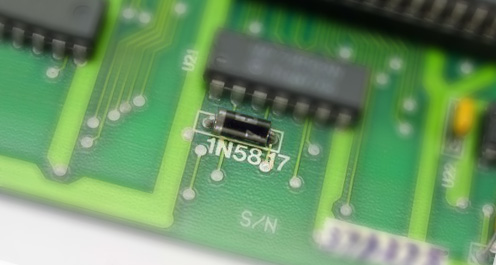

The 1N58xx series is a Schottky Barrier Plastic Rectifier with solderable matte tin-plated terminals. It is suitable for use in low-voltage high-frequency inverters, free-wheeling, DC/DC converters and polarity protection applications. Being Schottky diodes, the 1N58xx parts have roughly half the forward voltage drop of the 1N400x/1N540x series diodes, which improves efficiency in applications where they are usually forward-biased, such as power converters. The cost is a lower voltage rating and higher reverse leakage (approximately 1 mA at room temperature and increasing with temperature).



  1N5817 1N5819
Peak Repetitive Reverse Voltage 20V 40V



Applications

  • Guardring for overvoltage protection
  • For use in low-voltage, high-frequency inverters free-wheeling, and polarity protection applications.
  • Commercial, Power Management, Industrial



Features

  • Colour band denotes the cathode end
  • Guard-ring for overvoltage protection
  • Very small conduction losses
  • Extremely fast switching
  • Low forward voltage drop
  • High frequency operation



Specifications

  • Reverse Voltage Peak / DC Blocking Voltage Peak (VRRM, VRWM, VR)
    • 1N5817: 20V
    • 1N5819: 40V
  • RMS Reverse Voltage ( VR(RMS) )
    • 1N5817: 14V
    • 1N5819: 28V
  • Maximum Continuous Forward Current: 1A
  • Forward Voltage (VFM)
    • 1N5817: 0.45V@1.0A  /  0.75V@3.0A
    • 1N5819: 0.60V@1.0A  /  0.90V@3.0A
  • Max Surge Current: 25A
  • Termination Style: Through Hole
  • Operating Temperature Max: 125°C
