MC4 Female Connectors (Positive +)

  • RM7.00

  • Product Code: MC4-Female
  • Availability: In Stock

MC4 connectors are single-contact electrical connectors commonly used for connecting solar panels. The MC4 and compatible products are universal in the solar market today, equipping almost all solar panels produced since about 2011.

The MC4 system consists of a plug and socket design. Oddly, the plugs and sockets are placed inside plastic shells that appear to be the opposite gender - the plug is inside a cylindrical shell that looks like a female connector but is referred to as male, and the socket is inside a square probe that looks male but is electrically female. The female connector has two plastic fingers that have to be pressed toward the central probe slightly to insert into holes in the front of the male connector. When the two are pushed together, the fingers slide down the holes until they reach a notch cut into the side of the male connector, where they pop outward to lock the two together.



Features

  • This MC4 connectors are used in solar photovoltaic systems up to a special connector
  • MC4 connector solar photovoltaic panels dedicated connector, has a connection fast and reliable, waterproof, dustproof, easy to use features
  • Shell has a strong anti-aging, anti-UV capability
  • Connection cables using compression and confining connected, head of the fixed standard self-locking mechanism with a stable, open and close freely
  • Photoelectric conversion, an important component of the indispensable storage
  • Suitable for cable 2.5mm² / 4mm² / 6mm² (AWG14 / 12 / 10)



Specifications

  • Rated Current: 30A
  • Max. Voltage: 1000A DC
  • Resistance: <=0.5mΩ
  • Plug In Force: ≤50N
  • Pull Out Force: ≥50N
  • Temperature Range: -40 to +90C
  • Protect Degree: IP67
  • Suitable Cable: 2.5mm² / 4mm² / 6mm² (AWG14 / 12 / 10)
  • Diameter (Female): 59 x 19mm



Package Content

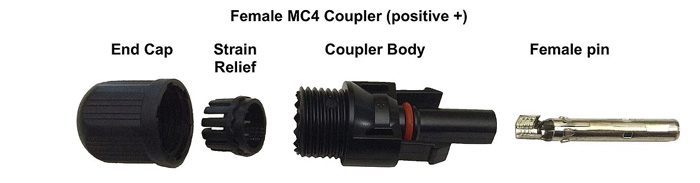

  • 1 x Female Connector
  • 1 x Female Pin
