Raspberry Pi 4 Model B

  • RM330.00

  • Product Code: PI 4 Model B
  • Availability: In Stock

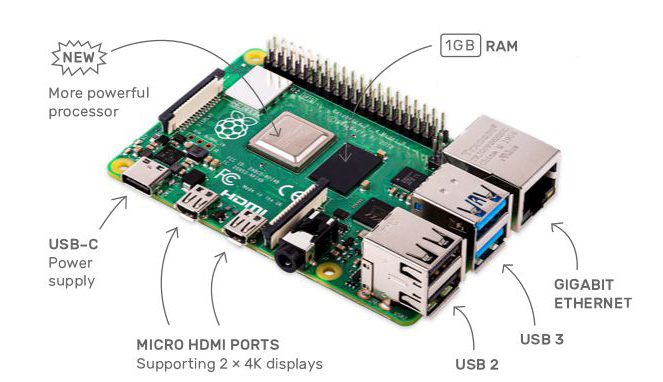

Raspberry Pi 4 Model B is the latest product in the popular Raspberry Pi range of computers. It offers ground-breaking increases in processor speed, multimedia performance, memory, and connectivity compared to the prior-generation Raspberry Pi 3 Model B+, while retaining backwards compatibility and similar power consumption. For the end user, Raspberry Pi 4 Model B provides desktop performance comparable to entry-level x86 PC systems.

This product’s key features include a high-performance 64-bit quad-core processor, dual-display support at resolutions up to 4K via a pair of micro-HDMI ports, hardware video decode at up to 4Kp60, up to 4GB of RAM, dual-band 2.4/5.0 GHz wireless LAN, Bluetooth 5.0, Gigabit Ethernet, USB 3.0, and PoE capability (via a separate PoE HAT add-on).

The dual-band wireless LAN and Bluetooth have modular compliance certifcation, allowing the board to be designed into end products with signifcantly reduced compliance testing, improving both cost and time to market.



So what's new?

  • New Raspbain Software (Debian 10 Buster)
  • Encapsulated processor Cortex A-72
  • USB 3.0 type C
  • Ethernet Broadcom BCM54213PE on a separate bus to the USB traffic
  • Bluetooth 5.5 and Bluetooth LE
  • LPDDR4 SDRAM
  • Since the new pi changes the full HDMI interface into two micro HDMI ports, so you may need this Micro HDMI to HDMI Adapter to work with your HDMI display.



Features

  • Broadcom BCM2711, Quad core Cortex-A72 (ARM v8) 64-bit SoC @ 1.5GHz
  • 1GB, 2GB or 4GB LPDDR4-2400 SDRAM (depending on model)
  • 2.4 GHz and 5.0 GHz IEEE 802.11ac wireless, Bluetooth 5.0, BLE
  • Gigabit Ethernet
  • 2 USB 3.0 ports; 2 USB 2.0 ports.
  • Raspberry Pi standard 40 pin GPIO header (fully backwards compatible with previous boards)
  • 2 × micro-HDMI ports (up to 4kp60 supported)
  • 2-lane MIPI DSI display port
  • 2-lane MIPI CSI camera port
  • 4-pole stereo audio and composite video port
  • H.265 (4kp60 decode), H264 (1080p60 decode, 1080p30 encode)
  • OpenGL ES 3.0 graphics
  • Micro-SD card slot for loading operating system and data storage
  • 5V DC via USB-C connector (minimum 3A*)
  • 5V DC via GPIO header (minimum 3A*)
  • Power over Ethernet (PoE) enabled (requires separate PoE HAT)
  • Operating temperature: 0 – 50 degrees C ambient
  • Supports Raspbian, Windows 10 IoT Core, OpenELEC, OSMC, Pidora, Arch Linux, RISC OS and More!





Software installation

Beginners should start with the NOOBS (New Out Of Box Software) operating system installation manager, which gives the user a choice of operating system from the standard distributions.

SD cards with NOOBS pre-installed should be available from any of our global distributors and resellers.

Alternatively, you can download NOOBS.

Raspbian is the recommended operating system for normal use on a Raspberry Pi.

You can browse basic examples to help you get started with some of the software available in Raspbian, find more detail about the Raspbian operating system, or read information on fundamental Linux usage and commands for navigating the Raspberry Pi and managing its file system and users.



Comparison with Pi 3+

Spec Raspberry Pi 4 B Raspberry Pi 3 B+
CPU 1.5-GHz, Quad-Core Broadcom BCM2711B0 (Cortex A-72) 1.4-GHz, Quad Core Broadcom BCM2837B0  (Cortex A-53)
RAM 1 - 4GB DDR4 1GB DDR2
GPU 500 MHz VideoCore VI  400 MHz VideoCore IV
Video Out dual micro HDMI ports single HDMI port
Max resolution 4K 60 Hz + 1080p or 2x 4K 30 Hz 2560 x 1600
USB Ports 2x USB 3.0 / 2x USB 2.0 4x USB 2.0
Wired Networking Gigabit Ethernet 330 Mbps Ethernet
Wireless 802.11ac (2.4 / 5 GHz), Bluetooth 5.0 802.11ac (2.4 / 5 GHz), Bluetooth 4.1
Charging Port USB Type-C micro USB
Power Requirement 3A, 5V 2.5A, 5V
Size 3.5 x 2.3 x 0.76 inches (88 x 58 x 19.5mm) 3.2 x 2.2 x 0.76 inches (82 x 56 x 19.5mm)
