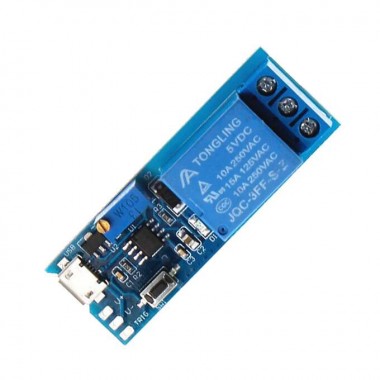

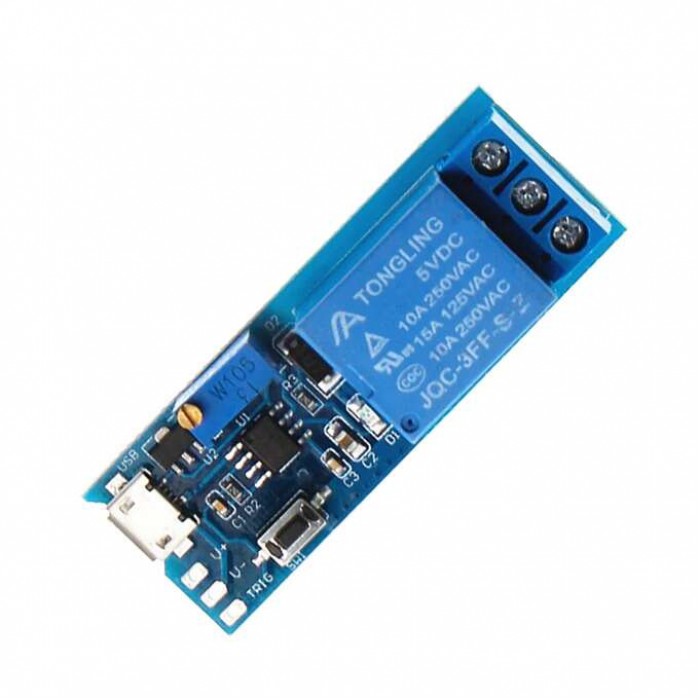

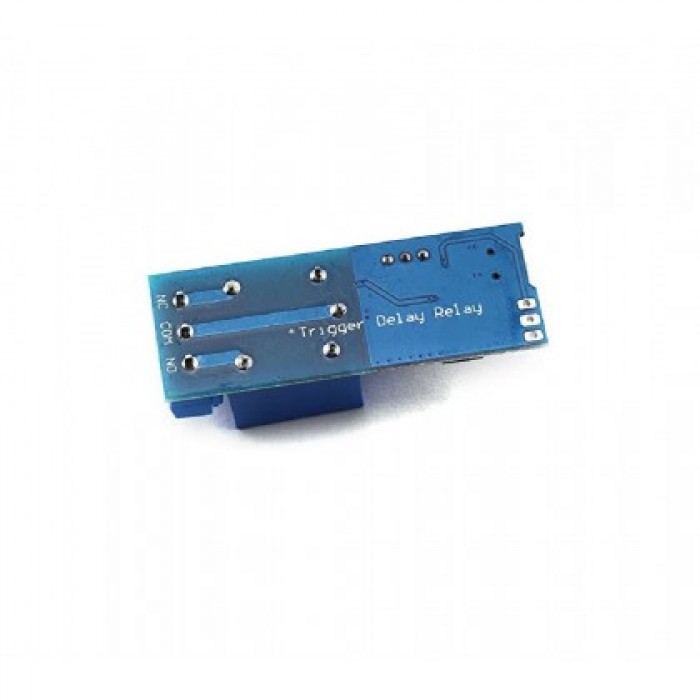

5V-30V Trigger Delay Relay Timer Module

Description:

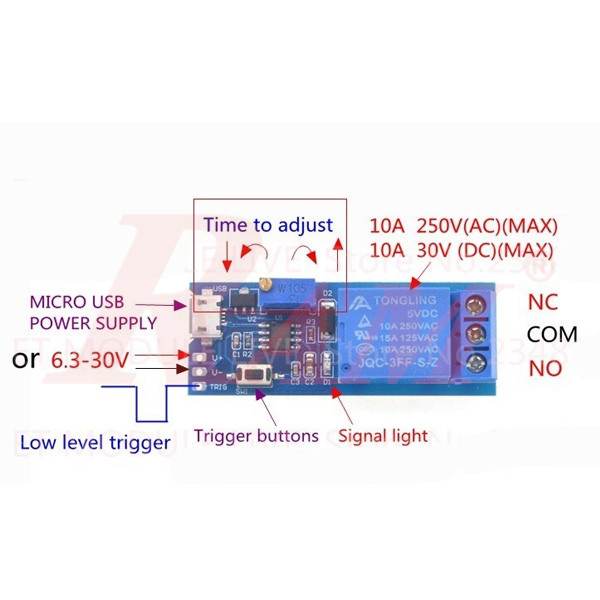

With MicroUSB 5.0V power input, it is very convenient to use plus with a 5-30V ultra-wide power supply voltage. The time can be adjusted by the potentiometer to meet your use in most occasions. Have a two trigger modes which is externak trigger and onboard button. The module has relay pull-in indicator. It is a strong anti-interference ability, the relay will not malfunction under various interferences, suitable for industrial control.

Specifications:

• Working voltage: 5-30V
• Working mode: after power is supplied to the module, the state of the module output terminal is normally open (NO) and common terminal (COM) are disconnected, normally closed (NC) and common terminal (COM) are connected
• The time can be adjusted by the potentiometer: the default is 0-24 seconds
• Has relay pull-in indicator light
• The module can be controlled: 10A 250VAC (AC), 10A 30VDC (DC) load
• Has relay freewheel protection
• The signal end of the module is designed with a pull-up and filter circuit, which has strong anti-interference ability
• Weight: 16g

Applications:

• Can be use as anti-theft alarm delay, building sound and light control light switch
• Can be use as a delay powered vehicle equipment, to prevent large currents generated as the car starts burning vehicle equipment

Packing Lists:

• 1* 5V-30V Trigger Delay Relay Timer Module
