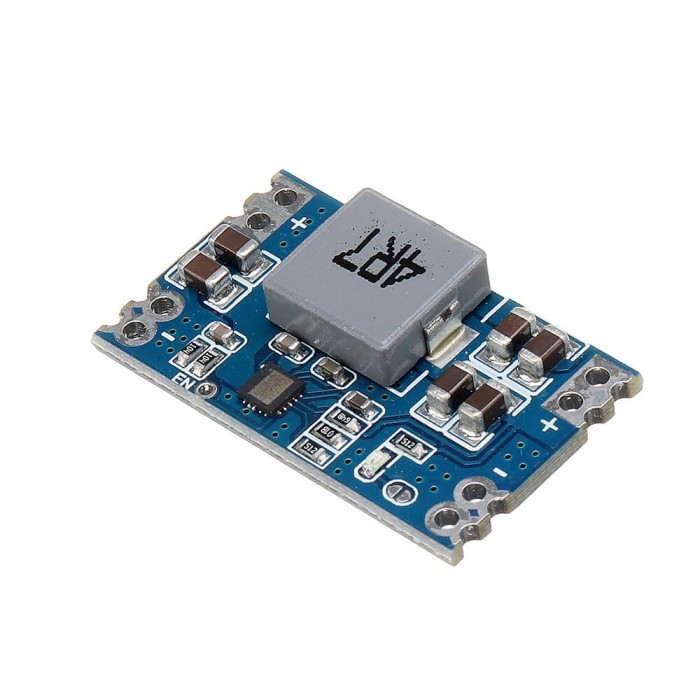

MIni560 DC 5V 5A Step-down Stabilized Module
-
RM6.50
- Product Code: Mini 560 5V
- Availability: In Stock
The MINI560 is a high-efficiency, compact DC-DC step-down (buck) converter module designed to step down a higher voltage input to a stable 5V output. This module is capable of delivering up to 5A of output current, making it suitable for various applications requiring high current and stable voltage.
Key features:
- High Efficiency: Up to 95% efficiency, minimizing power loss and heat.
- Wide Input Voltage Range: Accepts input voltages from 7V to 24V*.
- Stable 5V Output: Provides a fixed 5V output voltage.
- High Output Current: Delivers up to 5A continuous current.
- Compact Size: Small form factor for easy integration into various projects.
- Integrated Protection: Features overcurrent, overtemperature, and short-circuit protection.
Technical specifications:
- Input Voltage: 6V to 24V DC
- Output Voltage: 5V DC
- Maximum Output Current: 5A
- Efficiency: Up to 97%
- Short Circuit Protection: Yes
- Thermal Shutdown Protection: Yes
- Over Current Protection: Yes
Mechanical specifications:
- Package Type: Surface-mount module.
- Dimensions: Compact design for easy integration.
- Thermal Performance: Efficient heat dissipation due to high efficiency and design.
Schematic Diagram, Connection, Wiring, and Pinout :
- Pin Configuration: Includes VIN (input voltage), GND (ground), and VOUT (output voltage) pins.
- Connection: Connect VIN to the input power source, GND to ground, and VOUT to the load requiring 5V.
- Wiring: Ensure proper connections to minimize voltage drops and ensure stability.
Applications:
- Power Supply for Electronics: Provides a stable 5V output for various electronic projects and devices.
- Battery-Powered Applications: Efficiently steps down voltage from battery packs to 5V.
- Embedded Systems: Supplies 5V power to microcontrollers, sensors, and other embedded components.
- Communication Equipment: Powers communication modules and devices requiring 5V.
- Consumer Electronics: Suitable for powering USB devices, chargers, and other consumer electronics.
Package includes:
- 1 x MINI560 DC 5V 5A Step-Down Module
