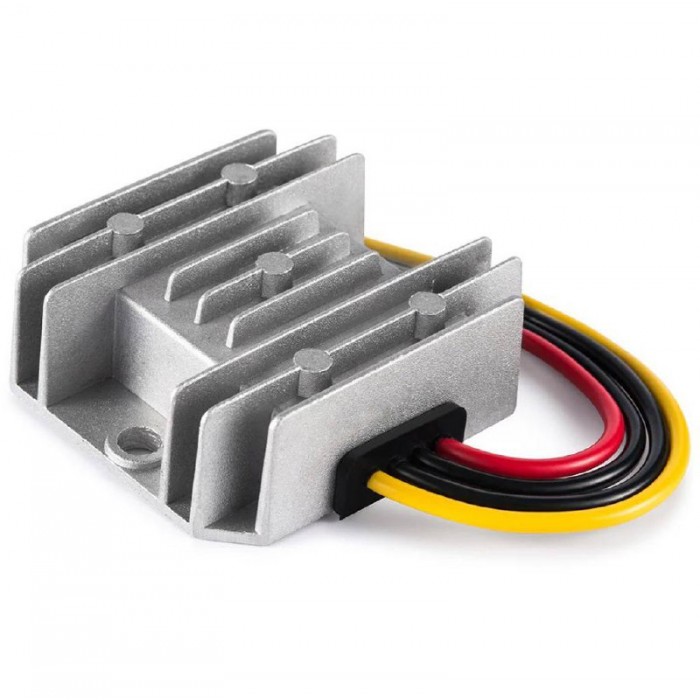

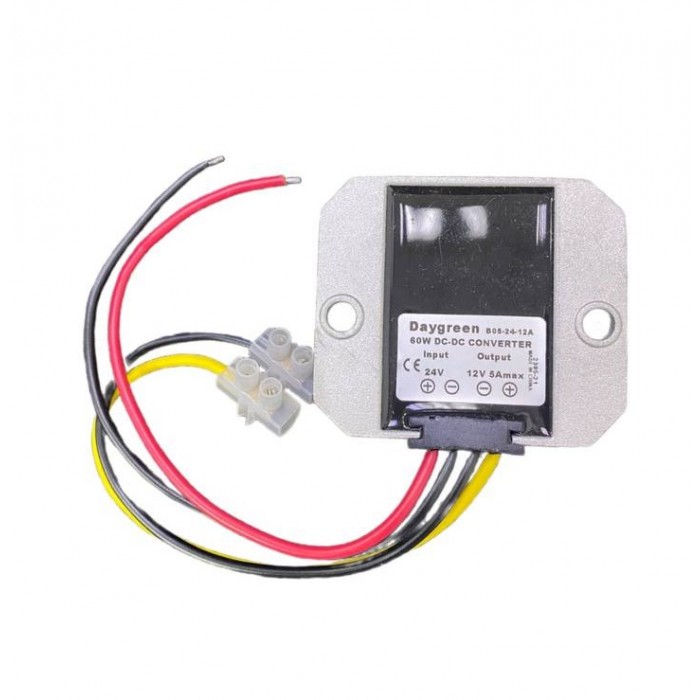

24V to 12V 5A 60W DC-DC Step Down Converter Voltage Regulator

Description:

Wide input voltage from 18 to 60V

Work for appliances from 0AMP to 5AMP automatically

100% full rated power

100% full stable output current

100% burn-in test

High-efficiency up to 95%

Waterproof sealed

Cooling by free air convection

Surface mountable

2-year warranty

Over-current, over-voltage protections

Over-temperature protection

According to:

EN 61000-6-3:2007/A1:2011/AC:2012

EN 55014-1:2006/A2:2011 EN 60950-1:2006/AC:2011

Efficiency: 95%

Input Voltage: 18-60V DC

Output Voltage: 12V

Output Current: 5A

Ripple: 200mVp

Line Regulation: ±0.2%

Load Regulation: ±0.2%

Voltage Accuracy:  ±1.5%

Enclosures: IP68

Dimension: 66*59*24mm

Net Weight: 0.12kg

Operating Temperature: -40~85°C

Certificates: CE, ROHS

Warranty: 2-year

Resource:

• Datasheet
