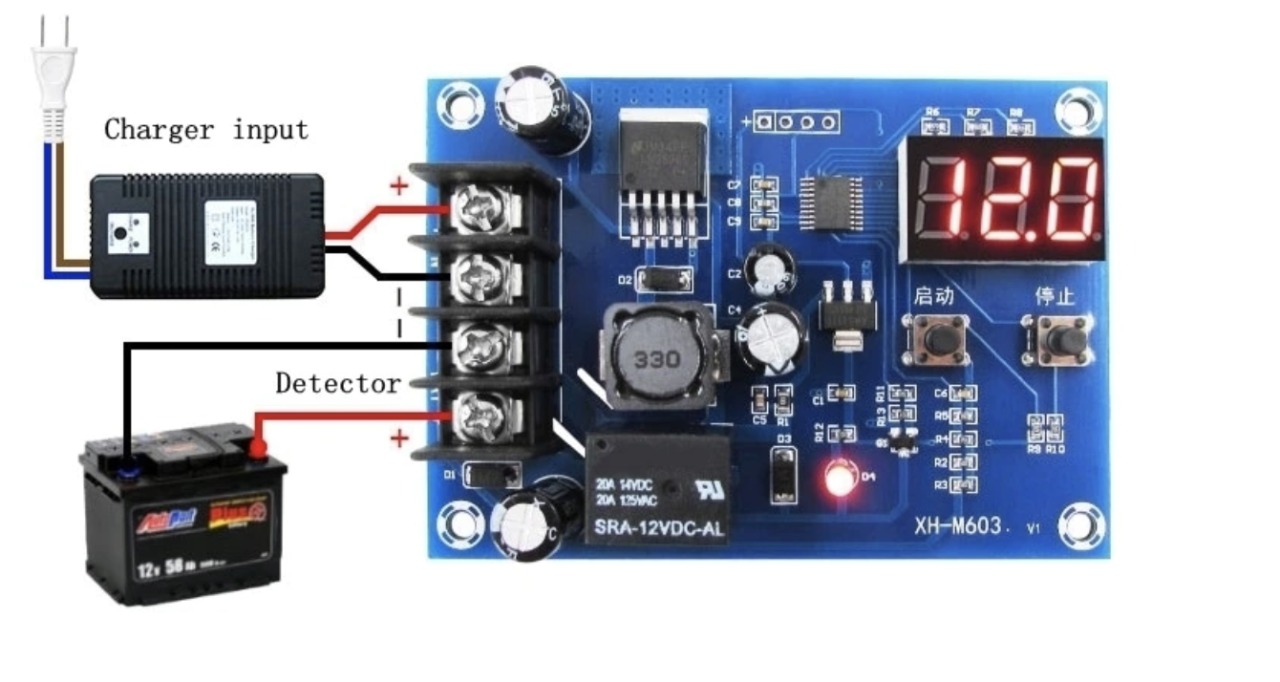

XH-M603 Battery Charge Controller Module

Overview:

The XH-M603 12/24v Charging module is ideal for charging Lithium Batteries. The module has a built in charge control protection and also allows you to set minimum and maximum charging voltages.

Instructions:

The start button plays the role of the up/increase button, and the stop button acts as the down/decrease button.

How to use:

1. Set Starting Voltage: In the normal display voltage state, pressing the start button which will display start charging voltage; long press the start button for 3s until the digital display flashes; press the start or stop button to set the start charge voltage value
2. Set Stop Voltage: In the normal display voltage state, pressing the stop button which will display stop charging voltage; long press the stop button for 3s until the digital display flashes; press the start or stop button to set the stop charge voltage value
3. Factory Reset: In power on state press the start/stop button at the same time, the digital display will show 888; that represents factory reset settings

Specification:

• Model: XH-M603
• Input Voltage: DC 10-30V
• Output current: 20A
• Display Precision: 0.1V
• Control Precision: 0.1V
• Output Type: direct output
• Voltage Tolerance: +/-0.1V
• Application Fields:12-24V storage battery
• Battery Types: Lead-acid batteries for solar power conversion, nickel-cadmium batteries, nickel-metal hydride batteries, lithium-ion batteries, polymer batteries, Car battery, electric car battery
• Size: 82*58*18mm

Package includes:

• 1 X XH-M603
