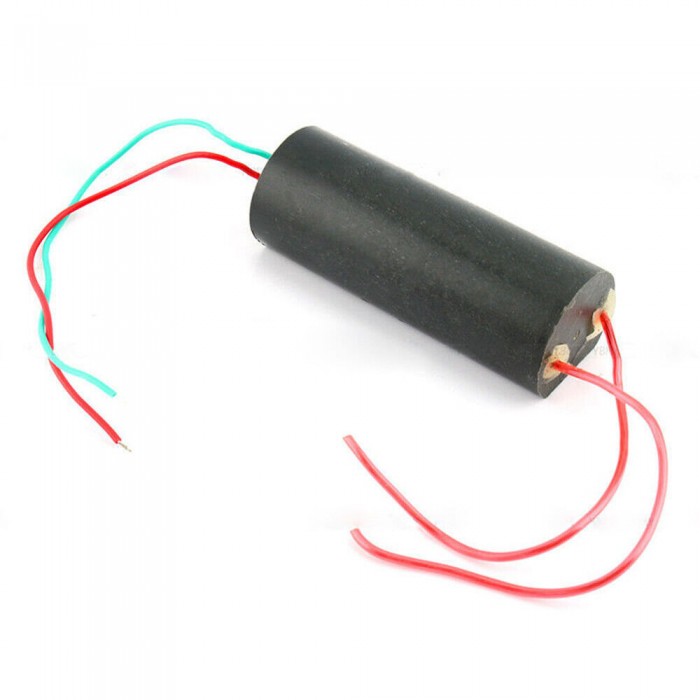

DC 3v-6v to 400kV 400000V Boost Step-up Power Module High-voltage Generator

Description:

Input voltage: DC 3 V to 6 V

Input current: 2 A - 5 A

High pressure type: the type of pulse current

Output voltage: 400000 v(Please pay attention to safety)

High pressure discharge distance between: 10 mm - 20 mm

The output high voltage wire length: 100 mm

Input power cord length: 100 mm (the red line is positive)

Wiring:

Red and green power connection red line:"+" green line "-"

output : the other side ,same color cable

Please notice:

the high-voltage module should avoid the use of electricity in high voltage no-load . (Power must be adjusted to a suitable distance to the high-voltage output line , battery capacity is proportional to the distance and the use of the high-pressure arc ( not a voltage as high as possible , you must provide enough current ) . Experimental test of the arc distance from short to long , Do not exceed the maximum arc distance electricity, energy can not be released due to high pressure , can easily damage the module. )

Work: intermittent , continuous work does not allow more than 1 minute and the output side does not allow shorting . Improper voltage and long working hours easily damaged module

Package included:

1x DC 3v-6v to 400kV 400000V Boost Step-up Power Module High-voltage Generator
