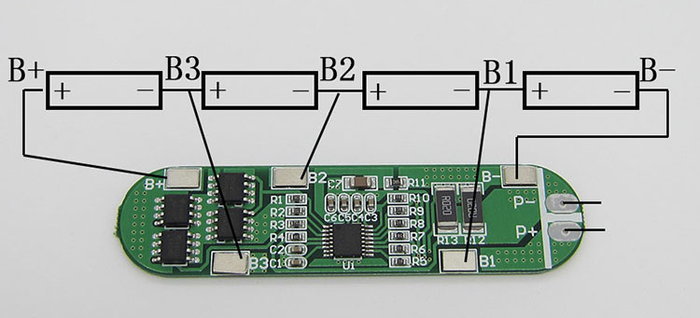

4S 10A 18650 LITHIUM BATTERY PROTECTION BOARD

Product description:

Function:

1. High continuous current, resistant to large current flow.
2. Convenient to install, easy to manipulate, suitable for many scenarios.
3. The card has short circuit protection function for better reliability.
4. The maximum working current is 6 ~ 8 A with a maximum momentary current of 12 A.
5. Wide range of applicable temperature, suitable for many places.

Specification:

Element type: protective board.
Model: HX-4S-A01.
Size: 72 x 17 x 3 mm/2.83 x 0.67 x 0.12 inches.
Overcharge voltage range: 4.25~4.35V
Over discharge voltage range: 2.3 ~ 3.0 V ± 0.05 V.
Working current of the upper limit: 6 ~ 8 A.
Momentary current of upper limit: 12A.
Quiescent current: less than 30 μA.
Internal resistance: less than 100 mΩ.
Charging voltage: 16.8 ~ 17 V.
Working temperature: -40 °C ~ 50 °C.
Short circuit protection: protection, charge recovery.

Package list:

1 x protective board
