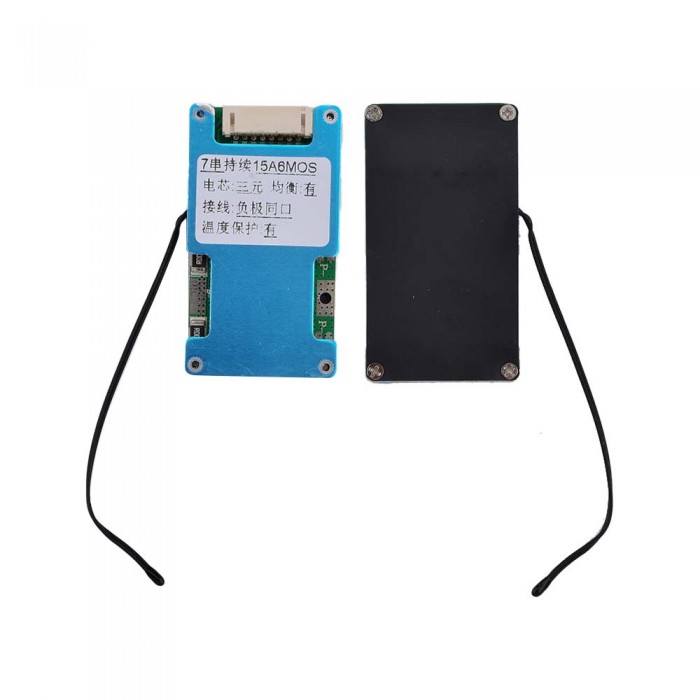

7S 24V 15A L-ithium 18650 Battery BMS Protection Board with Balancing Stable Protective Functions for Charge Protection

Features:

• Exquisite process and stable heat dissipation
• Overvoltage protection and Overdischarge protection
• Charging protection and Short circuit protection
• Over current protection and Over temperature protection
• Charging equalization disconnection protection

Product parameters:

• Type: ternary/7S/24V
• Wiring mode: same port
• Overdischarge voltage of single battery: 2.7V ± 0.08V
• Continuous working current: 25/20/15A (optional)
• Instantaneous protection current: 60A
• Overcurrent recovery condition: charge recovery or load disconnection
• Short circuit recovery condition: charge recovery or load disconnection
• Overcharge voltage of single battery: 4.25V ± 0.025V
• Continuous charging current: 20/15/10A (optional)
• Charging equalization voltage: 4.15V ± 0.025V
• Charging equalizing current: 40mA
• Charger voltage: 30V (recommended)
• Charging over temperature: 50 ℃
• Discharge overtemperature: 70 ℃
• Working power consumption: 30 μ A
• Internal resistance of main circuit conduction: 20m Ω
• Temperature range: - 40 to+80 ℃
• Wire break protection: Yes
• Size of flat cable: 2.0MM space/40CM length

Package include:

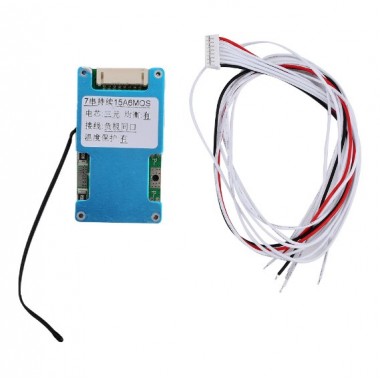

Lithium battery protection board X1
Flat cable X1
