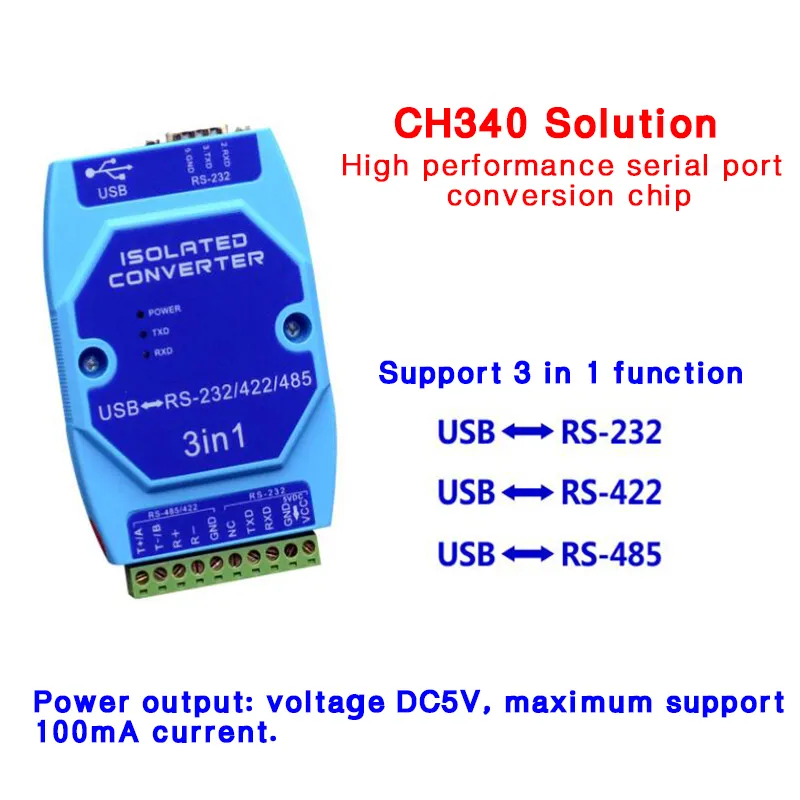

3 In 1 Isolated Converter USB-RS232/422/485

Description:

USB interface converter is a kind of industrial automation communication, which solves the problem of no communication serial port in modern PC.

Many important devices in the industrial environment still use the RS-232/RS-422/RS-485 interface interface design, so

Many users use USB to RS-232/rS-422/rS-485 converters to implement PCs with rs-232/rS-422/

Data transmission between RS-485 devices enables long-distance serial communication. The communication interface end uses optical isolation technology.

The 600W lightning surge protection circuit provides 1500V isolation voltage to effectively suppress lightning and ESD protection.

Features:

★ Built-in photoelectric isolator and 600W surge protection power supply can provide 1500V isolation voltage, which can effectively suppress lightning and ESD, and can effectively prevent lightning strikes and

Common ground interference

★The built-in processor automatically senses the channel data flow direction to automatically determine the channel status, automatically switches the enable control circuit, and easily solves the serial port data transmission and reception conversion delay problem.

★Using USB interface power supply Built-in overload protection is safe and reliable, suitable for any host USB interface access

Parameters:

★Standard: Comply with USBV1.0, 1.1, 2.0 standard EIA RS-232, RS-422, RS-485 standards,

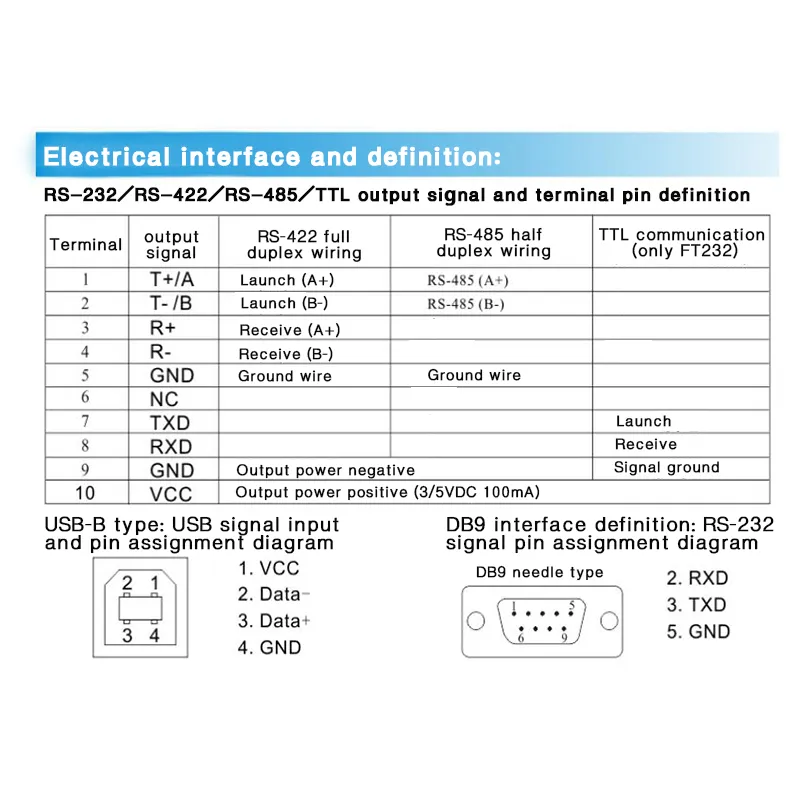

★ uSB signal: vcc, data+, data-, GND

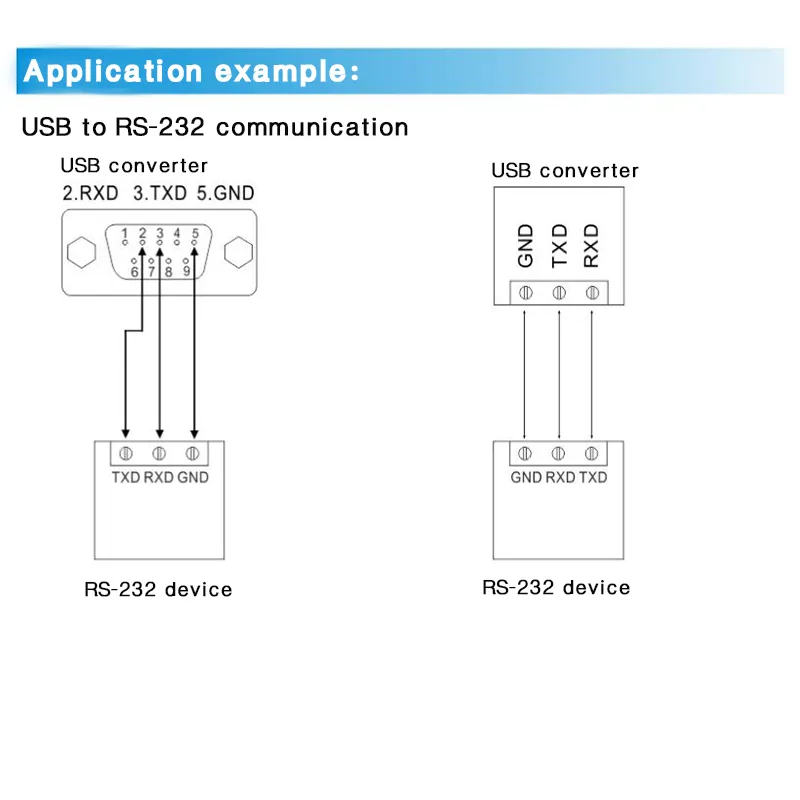

★ RS-232 signal: DB-9, GND, TXD, RXD

★RS-422 signal: t+, T-, r+, r-

★RS-485 signal: A, B

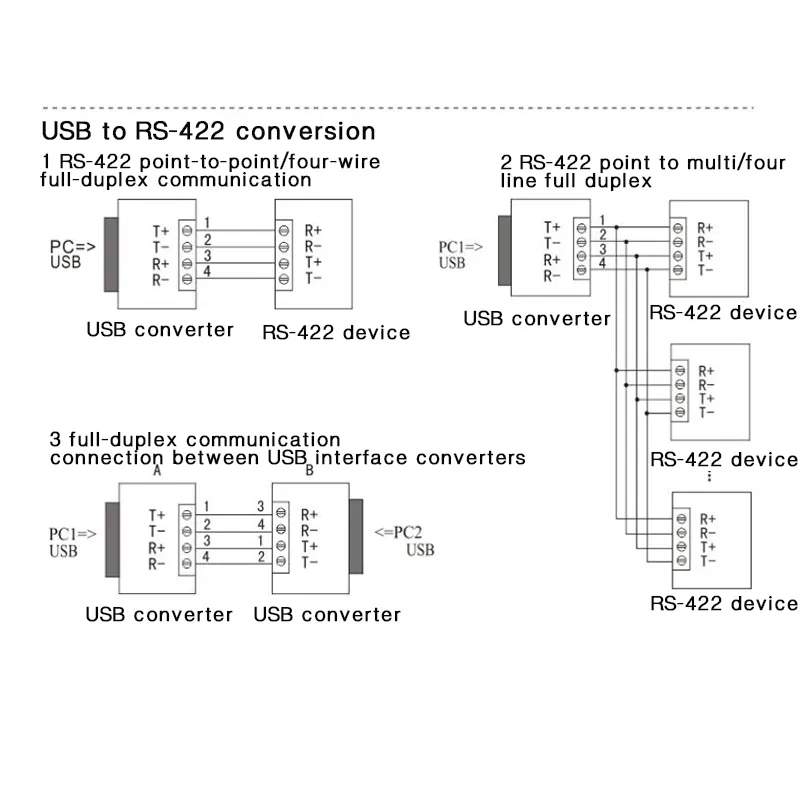

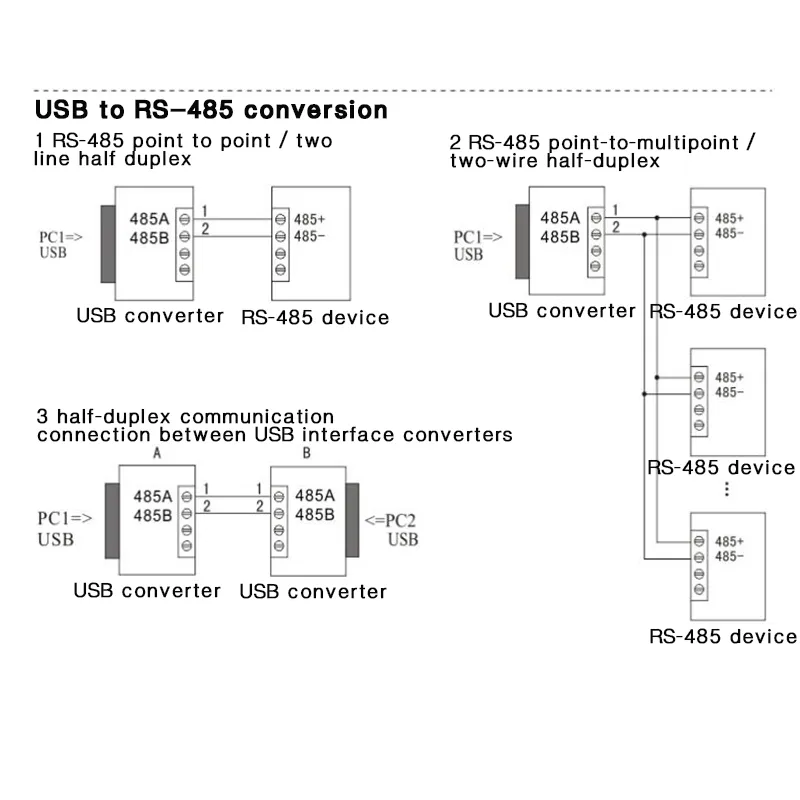

★Working mode: asynchronous work, point-to-point or point-to-multipoint, 3-wire communication, 2-wire half-duplex, 4-wire full-duplex

★Large-direction control: automatic data control and automatic control technology to automatically identify and control data transmission direction

★Baud rate: 300-921.6kbps, automatic detection of serial signal rate

★Load capacity: support point-to-multipoint converters that allow connection of 128 RS-422 or RS-485 devices

★ Transmission distance: USB interface does not exceed 5 meters, RS-232 interface does not exceed 15 meters, RS-422/RS-485 interface is greater than 1200 meters

★ Interface protection: surge protection, ±15KV static protection

★ Interface form: USB end B type interface female head, DB9 male connector, 10 position binding post

★Signal indication: 2 signal indicator transmission (TXD), reception (RXD)

★ Transmission medium: DB9 line, twisted pair, shielded line

★Dimensions: 122mm*62mm*26mm

★ Use environment: -40 ° C to 85 ° C, relative humidity of 5% to 95%

★Support Win full range /inux, etc.
