XH-M543 High Power Digital Amplifier Board TPA3116D2 Audio Amplifier Module Dual Channel 2*120W
-
RM45.00
- Product Code: XH-M543
- Availability: In Stock
Description:
This is XH-M543 digital power amplifier board which is built in TPA3116D2 chip.
Parameters:
| Parameter | Value |
| Model | XH--M543 |
| Chip type | TPA3116D2*1 |
| Output voltage | DC12--26V (recommended using 24V) |
| Output power | Max 2*120W |
| Signal to noise ratio | 100dB |
| Vocal tract number | Dual channel |
| Appearance size | About 92*68*17mm |

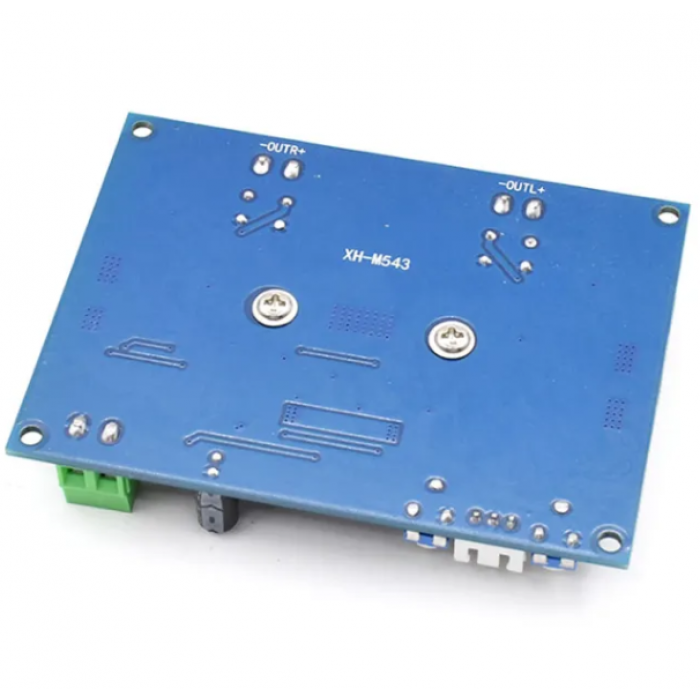

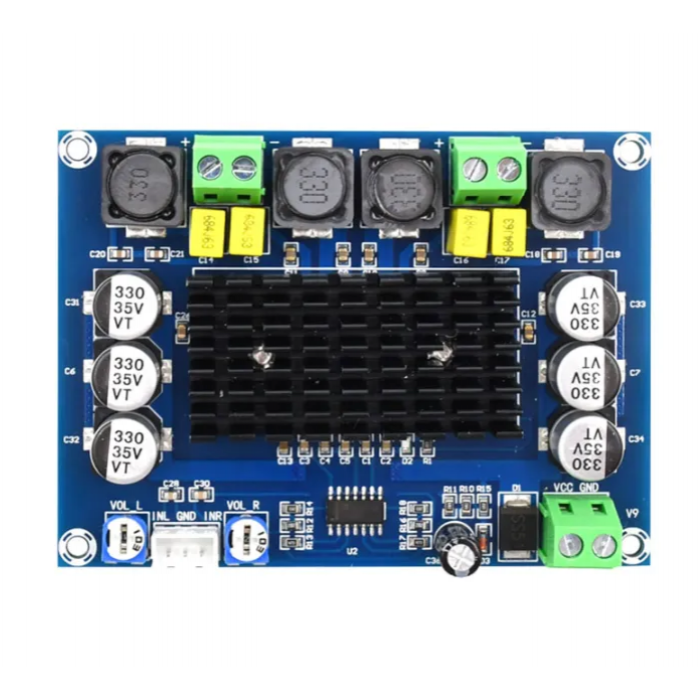

Collocation of the PCB:
1. Before the preset level of operational amplifier.
2. TPA3116D2 amplifier chip.
3. Efficient array radiator
4. Chip inductor
5. Military grade PCB
Instructions:
1>. Power supply: use DC 12-26V voltage power supply (recommend using 24V)

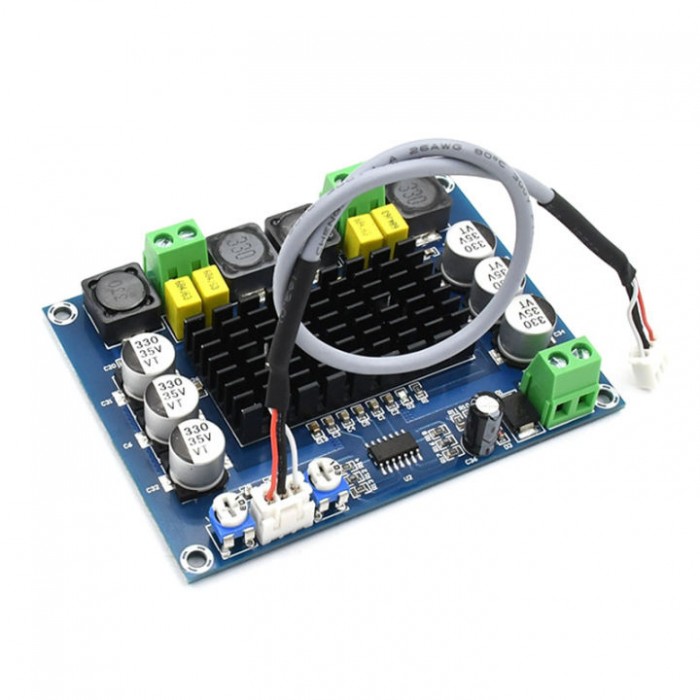

2>. Audio input: small 3P terminal input and about 30 cm dedicated audio terminal line. Easy to use.
3>. Power output: please connect the speaker to the OUT output of the board. Pay attention to positive and negative poles! 4 ohm speakers are recommended
4>. Volume adjustment: the potentiometer on both sides of the audio input terminal corresponds to the left and right sound tracks respectively. Rotate the volume with a screwdriver.
Working Principle:
Tested by ICStation's Outstanding Partner 12voltvids:
Learn More Details in the Video:
