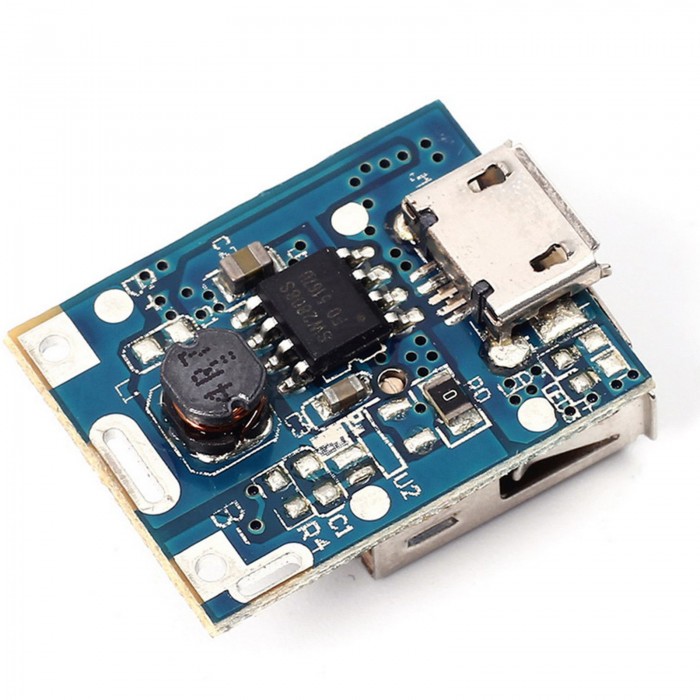

USB Power Bank Module (Charger)

Applications

• Boosting
• lithium battery charging (Charger)
• Power Bank

Features

• LED lights show the power, non-working state of intelligent automatic shutdown;
• Built-in lithium battery protection IC, over-current, overvoltage, undervoltage protection;
• Single USB output.

Specifications

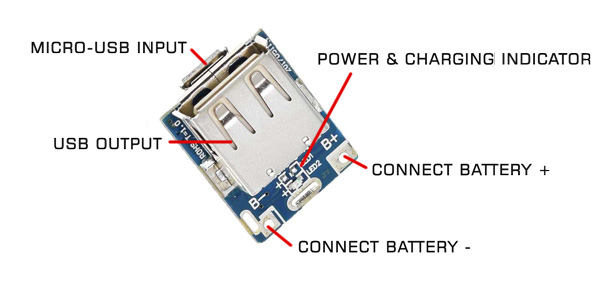

• Input port: MicroUSB
• Charging Voltage: DC 5V
• Charging Current: 1000mA
• Output port: USB
• Output parameters: 5V 1.2A
• Size:1.8x2.2x1.1cm

Note:

• Don't use output to connect more than 1200mA devices;otherwise,PCB will burn

• Please connect battery with B+，B- two ports;the polarity must be right,transposition will burn the chip
