High Voltage Generator (DC3V to 1000kV)

This high-voltage module uses the idea of Tesla coil to made high-voltage pulse output voltage current, small size, high efficiency, simple external circuit (just plug in the battery) discharge intensity violent.

Specifications

• Input Voltage: DC3.7 – 7.4V
• Output Voltage: max 1,000kV (1,000,000V)
• Input Current: 2 – 5A
• Output Current: 0.5A
• Wire Lenght: Output 10cm
• Diameter: 88mm x 26mm

Package Content

1 x High Voltage Generator

Power Input

Using one or two 3.7V battery, such as 18650, idle cell phone batteries ( to remove the protection board , the proposed capacity of 2000mAh or more ) or NiCd / NiMH battery pack, 4V or 6V lead acid batteries.

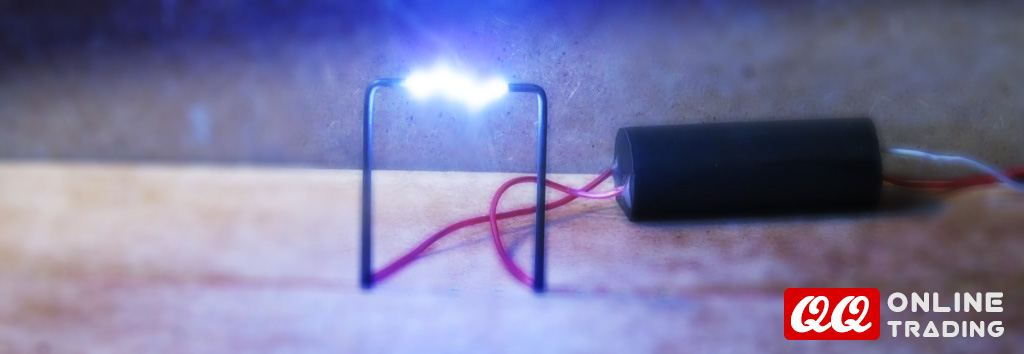

This module is a small production with high-pressure science inverter transformer / booster finished module, the input terminal DC 3V - 7.2V can get 20KV DC high voltage (about 1-2 cm arc) at the output can be used as high school science experiments , electronic equipment, negative ion generator, high voltage source to use when making small science.

Cautions

• Not to load high-pressure & high-voltage device.

• This is not a lighter

• Have to adjust the output distance between two wires (1 – 2cm)

• Not suitable for long working time due to the heat

• Two sections of small capacity lithium series of 7.2V, measured arc voltage has dropped to about 4V state , the capacity of the smaller voltage pulled lower. Recommended to use more than one lithium battery 2000mA , 4000mA. best conditions with more battery .
