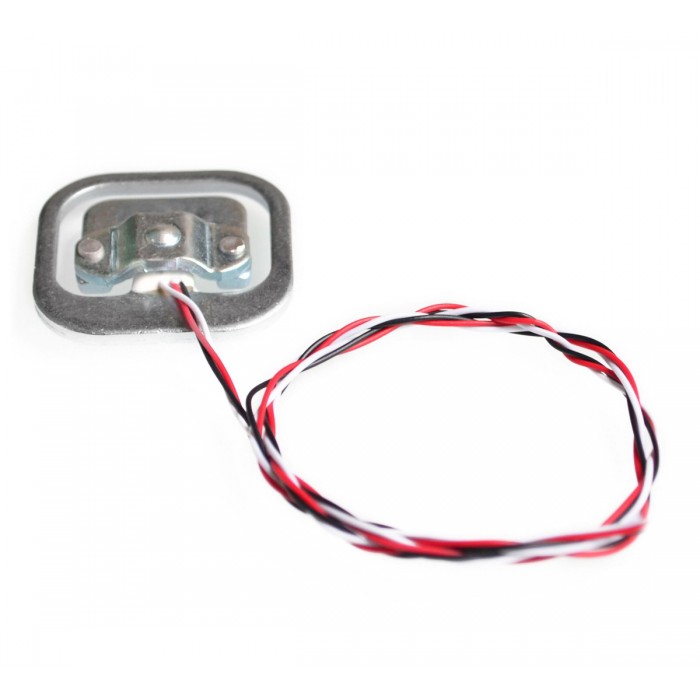

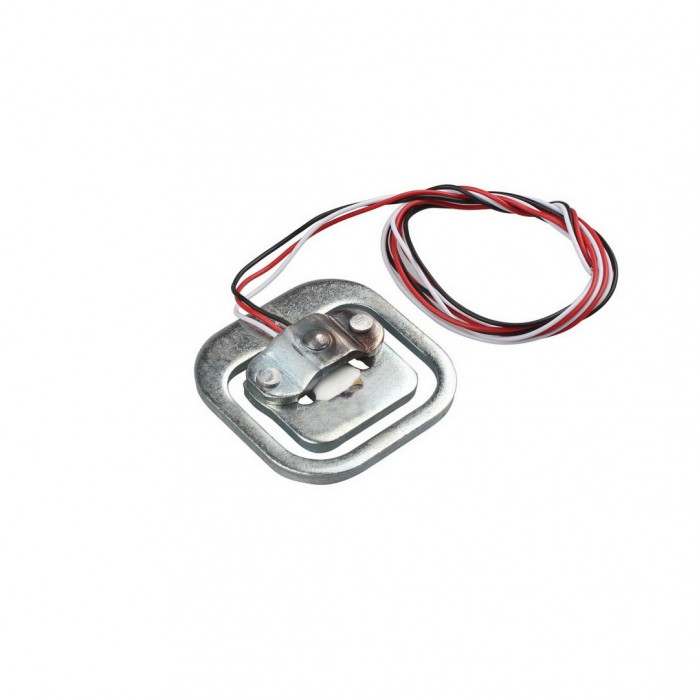

Load Cell 50kg - Half Bridge Weigh Sensor w/ 3-wires

This is a half-bridge load sensor, which is widely used in weight scales. You may use multiple load sensors simultaneously to increase the capacity range. Two sensors full-bridge measurements: 50kgx2=100kg Four sensor full-bridge measurements: 50kgx4=200kg Parallel use to add additional capacity.

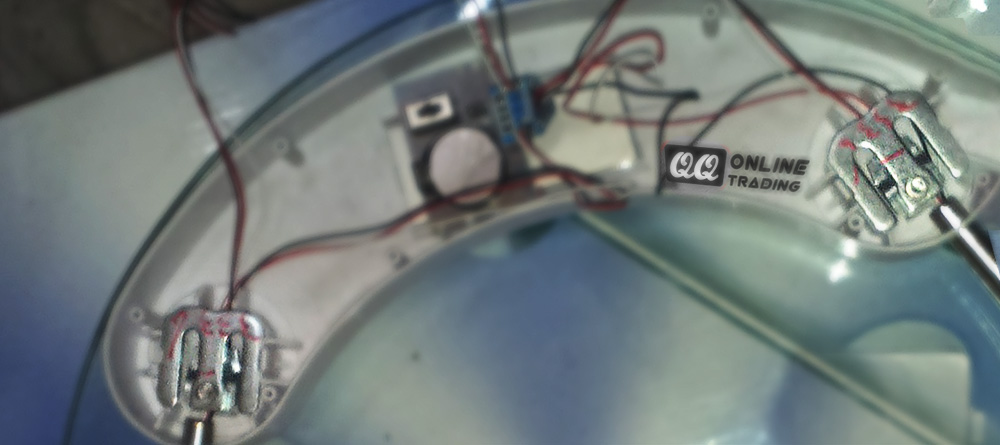

Used widely in hopper scales, platform scales, platform balance, belt scales and other electronic weighing devices.​

Specifications:

• Capacity : 50kg
• Recommend Excitation Voltage : 5V DC
• Max Excitation Voltage : 10V DC
• Rated Output : 1 ±0.15mV/V
• Overall Precision : 0.05%F.S
• Input Resistance : 1000 ± 20 Ohm
• Output Resistance : 1000 ± 20 Ohm
• Insulation Resistance : 2000 Ohm
• Working Temperature : -10°C ~ +55°C
• Safety Overload : 120%
• Total Size : 24 x 28 x 6mm (L*W*T)
• Cable Length : 150mm/ 6''
• Level of protection : IP65
• Material : Aluminium Alloy
• Weight : 32g

Package Content:

• 1 x Load Cell

Recommendation:

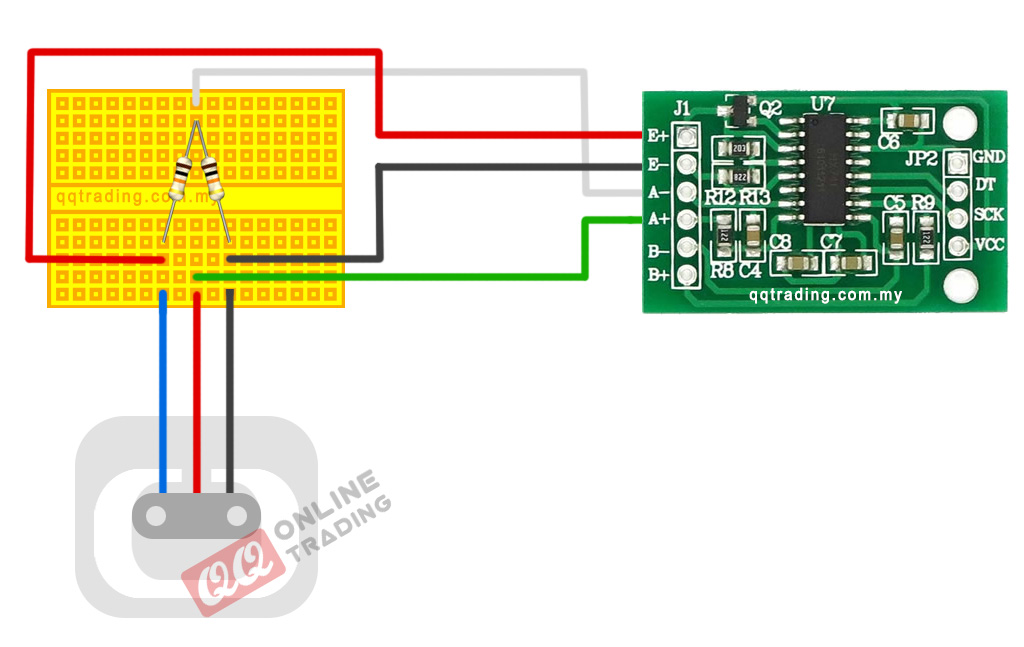

Connect a signal amplifier: Load Cell Amplifier 24-Bit ADC Weighing Sensor Module HX711   The Load Cell Amplifier and ADC Module is a small breakout board for the HX711 IC that allows you to easily read load cells to measure weight. By connecting the module to your microcontroller you will be able to read the changes in the resistance of the load cell and with some calibration you’ll be able to get very accurate weight measurements.
