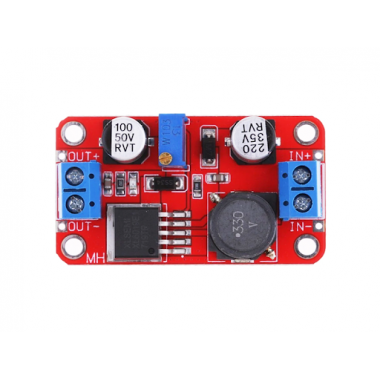

XL6019 Adjustable DC-DC Step Up Module 5A

Description：

• Conventional Constant Voltage Output BOOST Fully Integrated Solutions, Integrated MOSFET, Fewer External Components, Smaller Cos System
• XL6019 5A Current DC to DC Adjustable Boost Power Supply Board Module
• Adjust the blue knob of the potentiometer (counterclockwise general impulse, buck clockwise rotation) and with a multimeter to monitor the output voltage reaches the required voltage
• Built-in over temperature protection, full set overcurrent protection circuit reliability, high reliability
• Input and Output must be connected correctly

MS + -> Positive; IN ---> Negative;

OUT + -> Positive; OUT ---> Negative

Input Voltage: DC 3-35 V(40V MAX)

Output Voltage: DC 5-40V ( 45V MAX Adjustable) Input Current: 5A (MAX)

Conversion efficiency: 94% (MAX)

Output ripple: 100mv (MAX)

Switching Frequency: 220 kHZ

Working Temperature: Industrial (-40 ° C to + 85 ° C)

Voltage regulation: ± 0.5%

Load regulation: ± 0.5%

Size: Approx 50 * 28 * 13mm (L * W * H)

Instructions:

Input and Output must be connected correctly

Conventional Constant Voltage Output BOOST Fully Integrated Solutions, Integrated MOSFET, Fewer External Components, Smaller Cos System Built-in over temperature protection, full set overcurrent protection circuit reliability, high reliability

TO263-5L standard package, suitable for 30W boost inside applications.

Power (3-35 V), power indicator light, module is working properly.

Adjust the blue knob of the potentiometer (counterclockwise general impulse, buck clockwise rotation) and with a multimeter to monitor the output voltage reaches the required voltage

NOTE:

Long hours working current is recommended for use at less than 2.5 M, while adding heatsink mass (10 W output above); Because it is boosting the module, in order to ensure stable output, please keep the minimum differential 1.5 V.

Package：

3 * XL6019 5A Current DC to DC Adjustable Boost Power Supply Board Module
